Star-Delta Starter Project for Asynchronous Motor in EPLAN



In this post, we will go over the process of creating a star-delta starter project for an asynchronous motor using EPLAN. The project includes a power circuit, a control circuit, a table of contents, and a part list.

Project Steps

1. Power and Control Circuit

For the motor control, three contactors and a thermal relay were used.

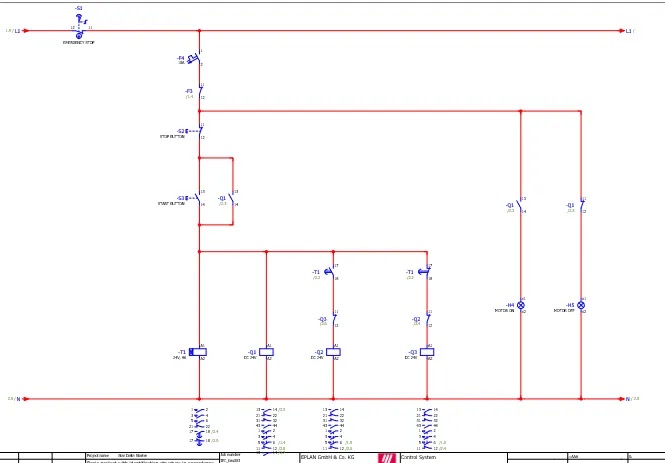

The transition from star to delta configuration is managed by the timer relay in the control circuit. Additionally, phase lamps were included to monitor potential phase faults.

2. Table of Contents

A Table of Contents was added to the project. By using the “Generate New Report” option, you can easily create a table of contents. You can view the detailed steps here.

3. Part List

After assigning the appropriate devices to the symbols in the project, a Part List was generated. To learn more about how to do this step-by-step, you can check the detailed explanation here.

Next Steps

At the end of the project, documentation steps like cover page, drawing form page, and others were completed. We will cover additional details in the upcoming posts. Stay tuned!
